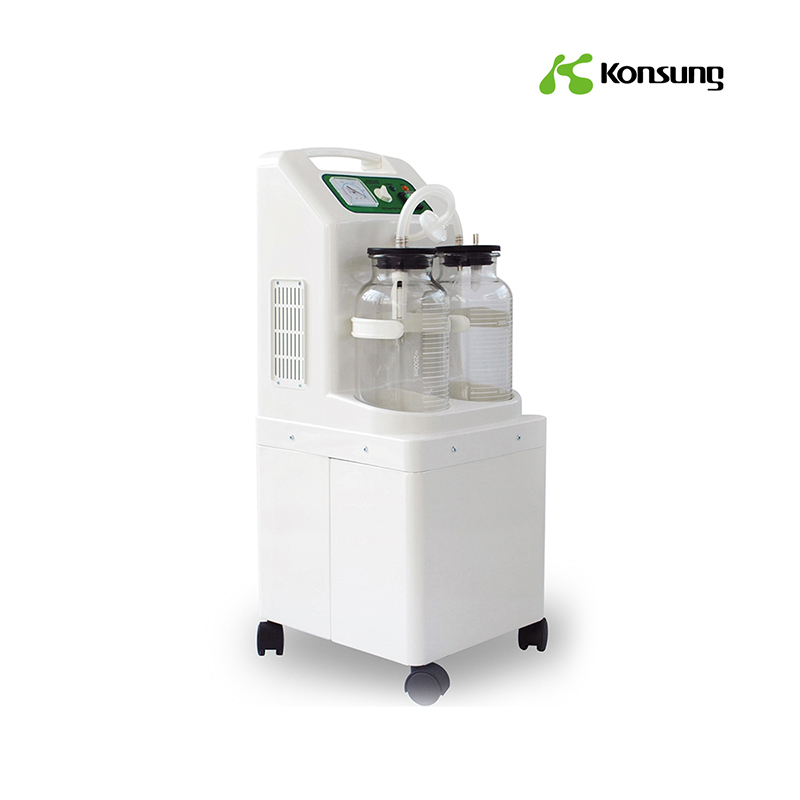

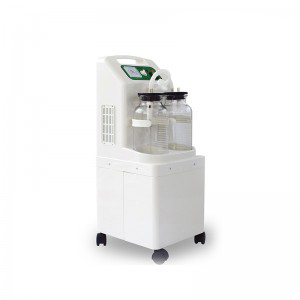

30L mobile suction machine with universal caster and pedal switch suitable for surgical use

30L mobile suction machine with universal caster and pedal switch suitable for surgical use

Suction machine

Product Detail

◆Heavy duty oil-free piston pump

◆Anti-over flow technology and large pump rate

◆Silence and stable working performance

◆2.5L×2 glass bottle washable and sterilization available

◆Stationary design with universal caster

◆Suitable for clinic and operation room

◆There are storage space at the bottom, easy to storage the pedal switches, power cord…

◆ It adopts oil-free piston pump to avoid oil and smoke pollution.

◆ This suction machine composed of seat, board, control machine, pump, case, inner suction kit and jar etc. Complete plastic panel, good anti-erosion performance, low noise, large flux, optional manual and pedal switch design gives easy maneuverability and transportation to this fashionable suction unit. It can successfully prevent fluid flow back to the pump due to the overflow control mechanism. It can be adjusted to your desired negative pressure with the help of the pressure regulator.

 Specification

◆Model: 9E-B Heavy duty type

◆Input Voltage: AC220V±22V

◆Input Frequency: 50Hz±1Hz

◆Average Power Consumption: 120VA

◆Max Negative Pressure Value: ≥0.09MPa

◆Pumping Rate: 30L/min

◆Continuous Working Time≥30 min

◆Rest Time≤30min

◆Jug Volume : 2500ml glass bottle, 2pcs

◆Sound Level≤70dB(A)

◆Dimension: 47.5×41.5×92.5cm

◆Weight:16.6kg

Verify the package contents include:

◆Suction Device

◆Instructions for Use

◆2500 ml Bottle (including 2500 ml jar, pump-canister tubing, and overflow protection )

◆2500 ml Bottle

◆Pedal Switch

◆Air Filter

◆Power Cable

◆Fuse ( RF1φ5×20/2.0A)  2PCS

◆Inner suction tube

◆Connection tubes(2 m length)
