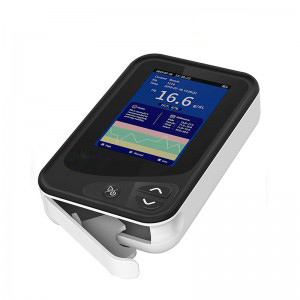

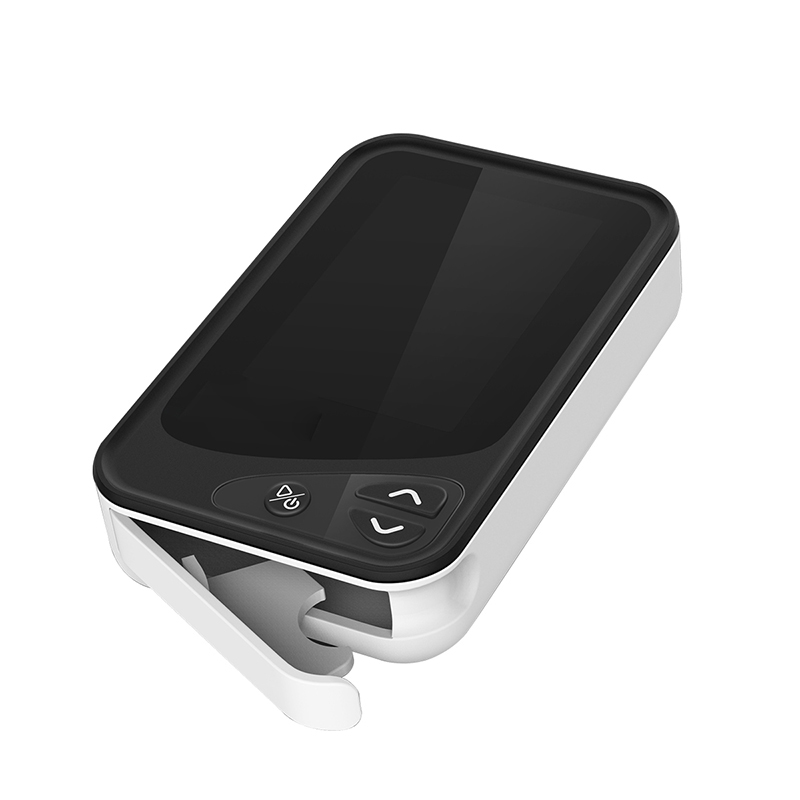

Hemoglobin Analyzer
Black portable accurate hemoglobin meter
Hemoglobin meter
Product detail:
◆Unique Microfluidics, the top domestic craft

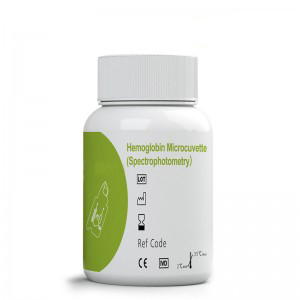

Unique disposable microfluidic chip, one-time use, completely eliminate carry pollution
◆ Small volume of blood test
7μL of blood volume is enough to support one test.
◆ Get test result within 3 seconds
Within 3seconds, HB analyzer will show your results on the big TFT display.
◆Big data storage
It can support storage of 2000 results.
◆Large physical button, permanent magnet suction feedback processing unit
After millions of tests, button is still as sensitive as ever
Power Supply
◆The analyzer can be powered by AC adapter or built-in rechargeable Li-ion battery.
◆Power requirements: AC 100～240V, 20VA 50/60Hz; DC 5V, 1A
Specification:
|
Principle |
Microfluidic and spectrophotometry with scattering compensation technology | |
|
Calibration |
Factory calibrated; needs no further calibration | |
|
Blood sample |
Material |
Capillary /venous whole blood |
|
Volume |
7μL |
|
|
Parameters |
Hemoglobin |
√ |
|
HCT |
√ |
|
|
Measurement range |
Hemoglobin |
0–25.6 g/dL |
|
HCT |
N/A |
|
|
Results |
≤3s |
|
|
Memory |
2000 test results |
|
|
Precision |
CV≤1.5% |
|
|
Accuracy |
≤3% |
|
|
Operating Conditions |
15°C～35°C ; ≤85% RH |
|
|
Storage condition |
Device |
-20°C～60°C ; ≤90% RH |
|
Test chip/strip |
2°C～35°C ; ≤85% RH |
|
|
Shelf life |
Device |
Three years (about 20 samples per day) or 22,000 tests |
|
Test chip/strip |
2 years when opened canister |
|
|
Power Source |
AC Adapter |
√ |
|
Battery |
rechargeable lithium battery |
|
|
Interface |

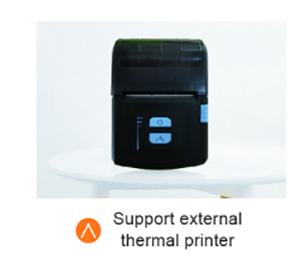

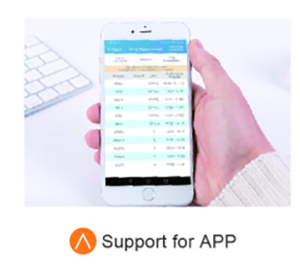

USB, Bluetooth, wifi, printer |
|
|
Dimension |
130mm × 82mm × 31.5mm |
|
|
Weight |
220g (built-in battery included) |
|
|
Use convenience |
fill blood in chip directly |
|
