Portable suction machine reliable and durable with big pump rate for home use

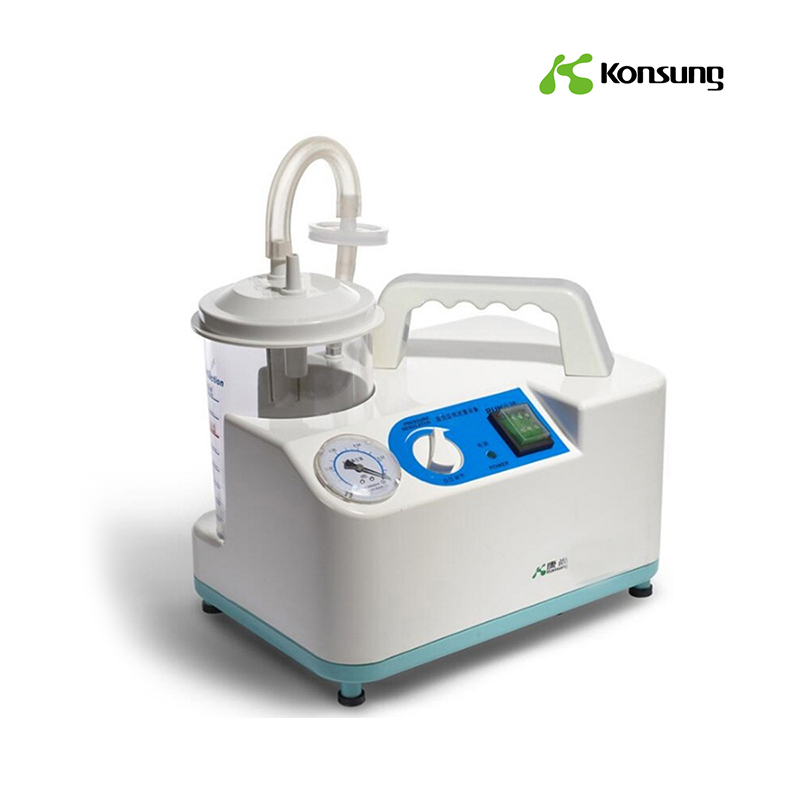

Suction machine 9E-A portable type

 Specification

◆Input Voltage: AC220V±22V

◆Input Frequency: 50Hz±2%

◆Average Power Consumption: 90VA

◆Max Negative Pressure Value: ≥0.075MPa

◆Pumping Rate: 18L/min

◆Continuous Working Time≥30 min

◆Rest Time≤30min

◆Jug Volume : 1000ml

◆Sound Level≤53dB(A)

◆Dimension: 35×26×29cm

◆Weight:3.9kg

Caution:

◆After shut-off, release the negative pressure, then, open the holder plug;

◆Never use the suction under the condition of the overflow device & the conductor dismantled.

◆Stop running, turn off the suction switch, and pull the power plug out of the socket to shut off the power supply.

◆Check the suction before use as per the installing and operating sequence to ensure its good performances, afterwards, start operation by connecting the aspiration conductor and the phlegm aspiration catheter already sterilized;

◆Please refer to the instructions before attempting to use the aspiration catheter supplied with the suction.

◆Regulate the negative pressure as required for aspiration through the regulating valve, open/back the switch based on the situation, and observe frequently the liquid level in the holder in the process of operation. Stop aspiration if the liquid level in the holder ascends to the rated capacity (still applicable if slanting the suction 10 °), and re-use it after empty and clean-up. Otherwise, the float will rise as the liquid level ascends till the valve is closed and aspiration stops automatically.

◆Adopt the procedures mentioned in “ Inspection & test on the overflow device”, If the liquid level still ascends after the overflow device has been shut off.
