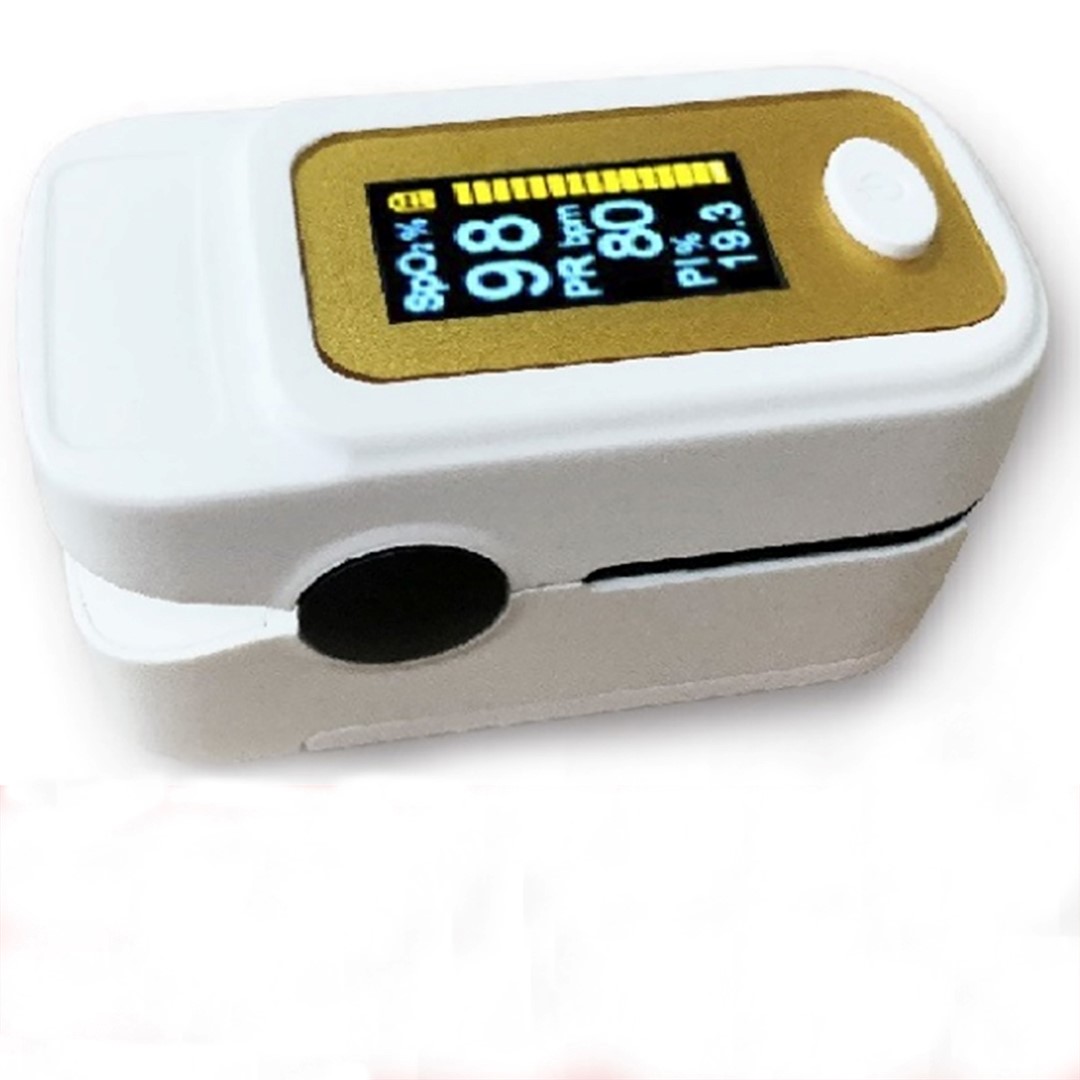

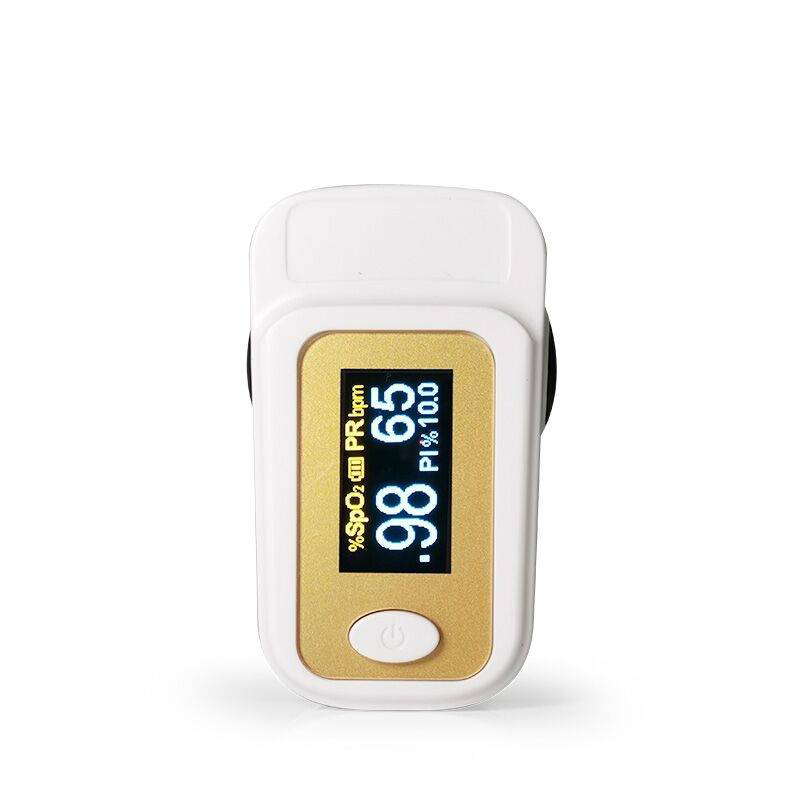

Economy digital SPO2 portable finger pulse oximeter with compact design
Pulse oximeter
Introduction
◆ Principle of the Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology, the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger. The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) …
Product Details:
◆OLED display parameter: SpO2+PR+PI
◆Oxygen desaturation index
◆Data store and analysis
◆Data review
◆Screen Display 4 directions and 6 models
◆Visual and sound alarm function, pulse rate sound indication Anti-movement, good low-perfusion performance, low power consumption (less than 30mA)
◆Power Supply: 1.5V (AAA size) alkaline batteries × 2 Large Alarm Sound
Maintenance
◆Replace the batteries timely when battery indication is low. Clean surface of the Pulse Oximeter before it is used in diagnosis for patients.
◆Remove the batteries inside the battery compartment if the Oximeter will not be operated for a long period of time.
◆It is better to store the product in a place where temperature is -20 – 55℃ and humidity is 10%-95%.
◆Regular inspection to make sure that no obvious damage to affect the safety and performance of the device.
◆No flammable substance, extreme high or low temperature and humidity.
◆Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Specification:
| Model | SONOSAT-F02P |
| Working Environment | |
| Types of electric shock protection | Dry batteries |
| Anti-electric shocks degree | BF type |
| Work Humidity | 15%-85% (no condensation) |
| Transport Humidity | 10%-90% (no condensation) |
| Transport Temperature | 5-40℃ |
| SPO2 | |
| Measuring Range | 70-99% |
| Accuracy | ±2% on the stage of 70%-99% |
| Resolution | 1% |
| Low perfusion | ＜0.4% |
| Pulse Rate | |
| Measuring Range | 30-240bpm |
| Accuracy | ±1BPM or ±1% (the larger one) |
| Power | two AAA 1.5V alkaline batteries |
| Power consumption | ＜30mA |
| Automatic power-off | the products shut down automatically |
| After no signal | 8s |
| PI | |
| Perfusion Index Display | 0-30% |
| Packing Information | |
| Packing Size | 40×37×24cm, 40pcs/carton |
| G.W./N.W. | 0.15/0.12kg |
