ODM design oxiemter
ODM design oximeter

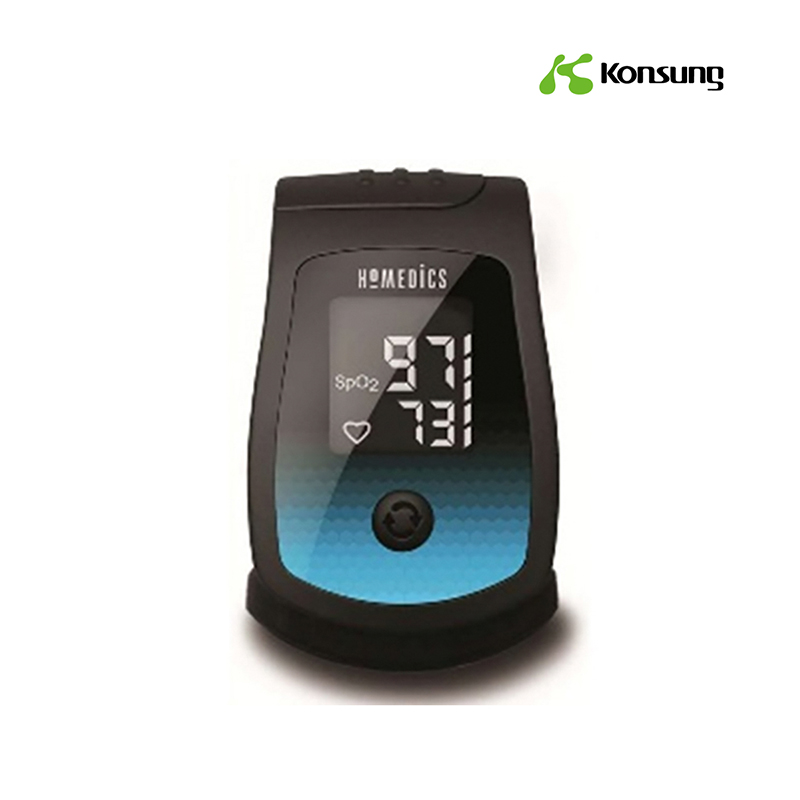

Oximeter
Product Details:
◆LED screen, the detection results are high definition.
◆Auto power-off. After the end of the test, automatic shutdown when without operation in 8 seconds.
◆Can be taken with you wherever you go, does not take up space.
◆Comfortable to wear. The interior is made of silicon, which is more and more comfortable and safe.
◆Measures oxygen level & pulse rate using Optometric Technology
◆Allows for movement and nail polish during the measurement
◆Pinch-free design
◆Permits movement during use
◆No prescription needed – for sports & recreational use
◆Storage Pouch
◆Storage/Review trend data up to 3888 groups, data save time interval settable.
◆Audio and visual alarm when parameters exceeded and sensor-off
◆Battery Included. More than 24 hours continuous working time with 2 AA alkaline batteries.
Power requirements
◆Two pieces of 1.5V 600 mAh AAA alkaline batteries, it can be operated last for 20 hours continuously
◆Power consumption: 30mA (Normal)
◆Energy status: Indicator Icon and notice
◆Auto Power Off function: after 10 secs of absence of signals
Specification:
| Monitoring Parameters: | SpO2、PR、PLETH、Pulse strength、TEMP |
| Signal Sockets: | SpO2 socket、TEMP socket、USB socket(for charge battery and transmit data) |
| SpO2 | Patient: Adult, Pediatric, Neonate Range: 0% ~ 100% Resolution: 1 % Accuracy: 70% ~ 99%: ± 2 % 0% ~ 69%: Unspecified |
| Pulse Rate | Range: 0 bpm ~ 250bpm Resolution: 1bpm Accuracy: ±2bpm |
| TEMP | Channel: 1 Input: Body surface thermal-sensitive resistor temperature sensor Range: 0℃～50℃ Resolution: 0.1℃ Accuracy: ±0.2℃ |
Packing Information
Model: SONOSAT-PX130
Size: 5.7×3.1×3.0 cm
Weight: 54g
