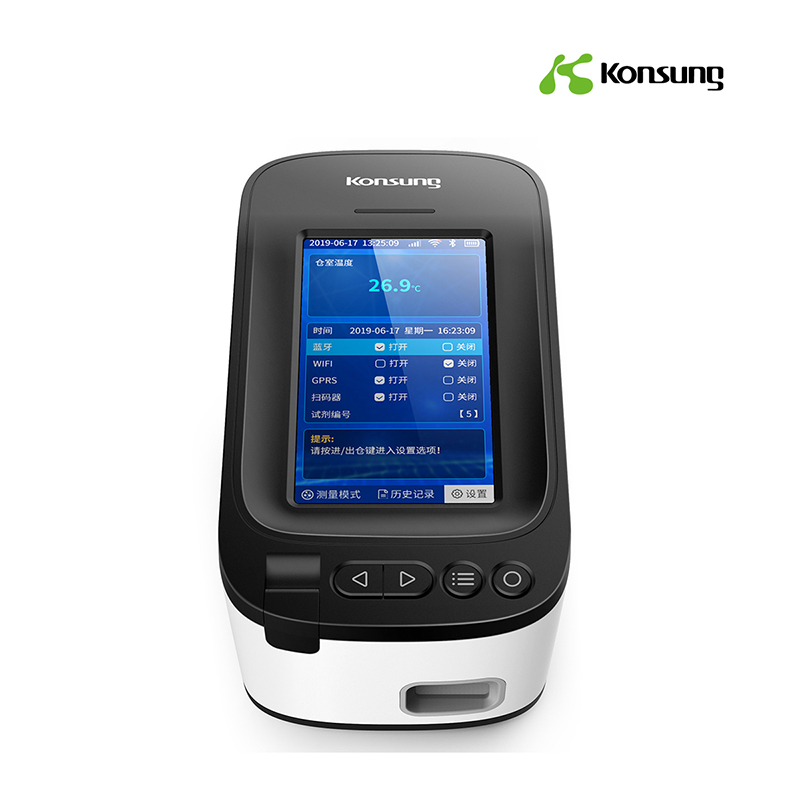

Time-resolved Fluor Immunoassay Analyzer
Time-resolved Fluor Immunoassay Analyzer
Time-resolved Fluor Immunoassay Analyzer
Product detail:
◆The Time-resolved Fluor immunoassay Analyzer is an immunofluorescence detection system based on the principle of photoelectric detection.
◆The analyzer is used to achieve rapid quantitative detection of analyze concentration in blood with the matched test card.
◆The analyzer has high detection accuracy, strong stability, fast detection speed and low cost.
◆The analyzer is widely used in many fields such as disease detection, medical care, epidemic surveillance, food inspection and quarantine.
◆Working principle: collect blood sample and drop it into a test card, then place the test card to the analyzer’s sampling system (test bin), the analyzer irradiates the antigen-antibody reaction area of the test card with an excitation light source, which stimulates the attached fluorescent substance to emit fluorescence. The signal is collected and converted into a photoelectric signal, and the detection system detects the content of the analyze in the blood according to the strength of the photoelectric signal. The strength of the photoelectric signal is related to the number of fluorescent molecules.
◆Application scope: the product is intended used to quantitative determinate the analyze concentration in blood with the matched test card. The analyzer is intended for in vitro diagnostic experiments by laboratory medicine professionals only. The analyzer is is suitable for medical institutions, especially grassroots medical and health institution, community clinic, clinics/emergency department etc., and also suitable for scientific research laboratories.
Specification:
| Detection method | Principle of fluorescence immunochromatography |
| Detection time | ≤3min |
| CV | ≤±10% |
| Sample type | Peripheral l or venous blood |
| Sample volume | ≤ 15 µL(CRP) |
| Power supply | Adapter inputACI00~240V,50/60Hz,30V A, output5V,2A |
| Built-in Lithium battery: DC3.7土03V | |
| Dimension | 95.6mm×96mm×183.5mm |
| Weight | 700g |
| Data storage | 2000 results |
| Display | 4.3-inch LCD touch screen |
| Storage environment | Temp:0 °C ~50°C; Rh:10% ~ 90% |
| Operation environment | Temp:15 °C ~35°C; Rh≤85% |
| Test Parameters | CRP (C-reaction protein) Detect Range: 0.5~ 150 mg/L |
| CRP+SAA (Serum amyloid A) Detect Range: 5~150 mg/L | |
| PCT(Procalcitonin) Detect Range: 0.1 ~50ng/ml | |
| NT-Pro BNP Detect Range: 30-35000pg/ml |
