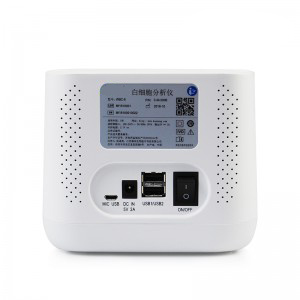

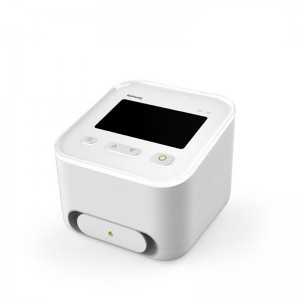

White WBC analyzer

Short Description:


Product Detail

Portable WBC DIFF analyzer with white colour



White WBC analyzer (3) Camouflage WBC Analyzer50 (1) Black Hemoglobin Analyzer41 (4) Black Hemoglobin Analyzer41 (3)





WBC analyzer



Product Details:



Special for the use of primary medical department

Small volume, built-in lithium battery with big capacity, ultraportable design.

At the place where nearest to the patient, it can get accurate diagnostic information through analysis the image of blood sample image. Compare with large-scale device, this device has advantages of time and space, which not available for large-scale device, and it resolved whether has problem for basic blood routine examination.

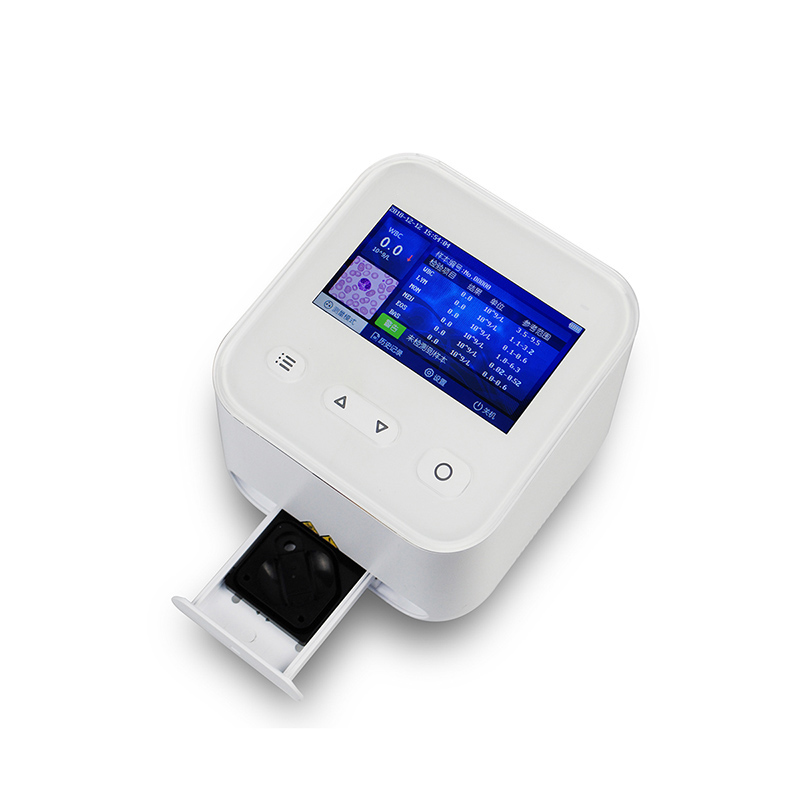

Smart TFT color screen

True color screen, intelligent voice, humanized experience, data changes are always at hand

ABS+PC material is hard, wear resistant and antibacterial

White appearance is not affected by time and use, and highly in antibacterial properties

Unique Microfluidics, the top domestic craft

Unique disposable microfluidic chip, one-time use, completely eliminate carry pollution

Exclusive matrix core sensor

Unique OCSP core algorithm combined with tens of thousands of clinical data to give you accurate measurement results

Large physical button, permanent magnet suction feedback processing unit

After millions of tests, button is still as sensitive as ever

Accuracy

Merry WBC analyzer configure with high accuracy pattern recognition algorithm, even accurate counted for highly clustered cells, improve the inspection precision obviously, and it offer new measurement method and evaluation method for the diagnostic monitoring and treatment of disease in time.



Specification

Work environmental temperature 0 ℃ ~40
Inspection item White blood cell count
Inspection method Optical Inspection
Sample dosage 10ul
Inspection time ≤3min
Scope of inspection (0.3-30.0) × 109/L
Type of sample capillary vessel or vein
 R2(Linear regression correlation) 0.9919
Comparability of device deviationWBC≤±5%
Repeatability precision≤6.0%
Display 4.3″ LCD screen, and it can show test result and self-checking code
Data transmission Transfer by USB and blue teeth
Database 30000 pcs
Power AdapterInput: 100-240V,50/60Hz ,30VA; Output: DC 5V,2A
Inner Power DC 3.7V

Dimension: 13.8×14×11.6cm
