Fuse

Short Description:

Structural fratures

◆Fuse link is made of pure silver(or silver strings),welding low tin and encapsulated in the melt tube made of high-strength porcelain, the fuse tube filled with high-purity quartz sand chemically processed as the arc medium.Fuse body is connected with contacting terminals by spot welding fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces,the connection made by riveting as the support of the appropriate size fuse body parts.This series fuse has a compact and convenient device, use security, beautiful appearance….


Product Detail

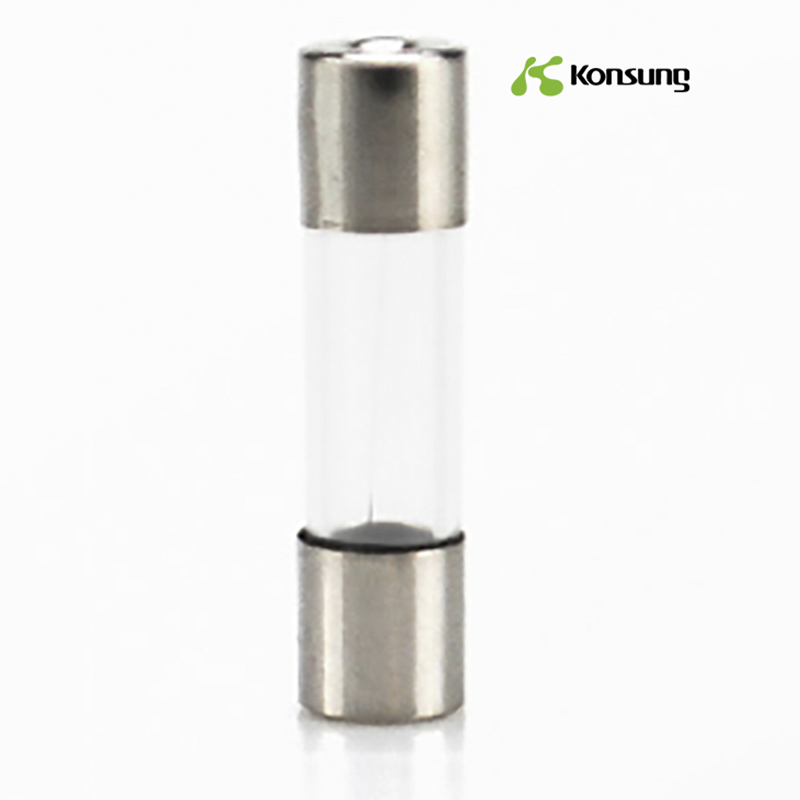

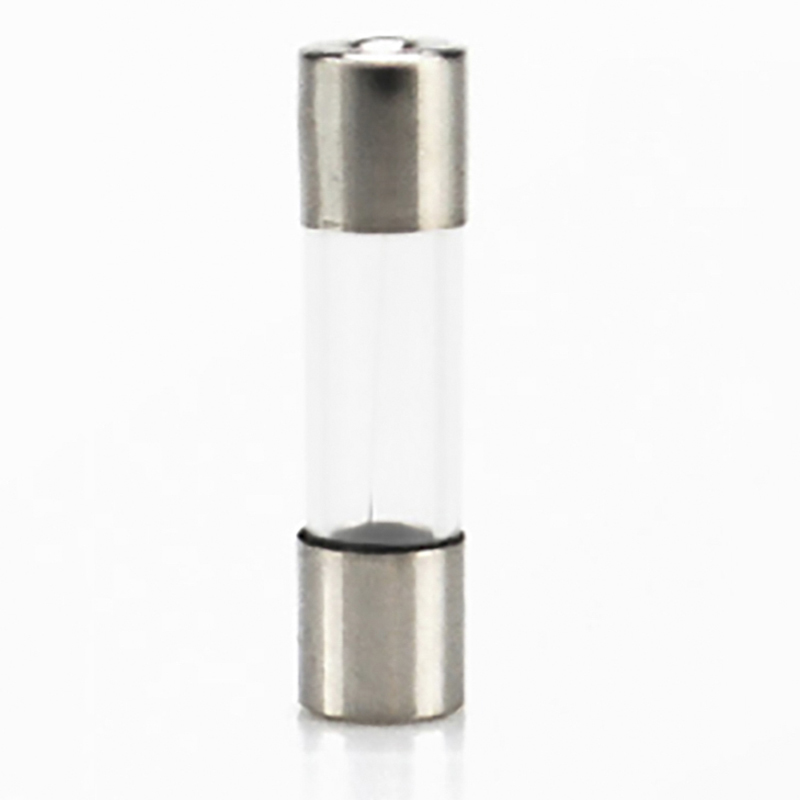

Fuse for suction machine

Fuse

Suction machine fuse

Product details:

◆Material: lead free glass

◆Type of fuse: Fast Blow

◆Safety Standards: IEC

◆Rated voltage: 250V

◆Size: RF1φ5×20/2.0A

◆The storage condition:

◇Temperature: -20℃70℃;

◇Relative Humidity:090%, under the condition of non-condensation



How to replace the fuse tube

◆The fuse tube is on the rear side of the pedestal. Turn off the power and counter-clockwise turn it when you change it.



Parameters

Specification:

Item Name Glass Tube Fuse Brand Name Merry
Color Can Be Customized Application Low Voltage
Safety Standards IEC Fuse Type Glass Fuse Tube
Rated Voltage 125V/250V Warranty 1 years
Material Glass/Ceramic Tube Product Type Fuse
Package 20box/carton MOQ 50box



Test of blow time

Testing current

Blow Time

Min

Min

Max

100%

4h

4h

1Hours

135%

1h

1h

 1h

200%

30s

30s

30s



Fusing time & Test current

gPV” fuse body’s rated current (A)

fusing time (h)

test current

Inf

If

In≤63

1

1.13In

1.45In

63<In≤160

2

160<In≤400

3

In>400

4

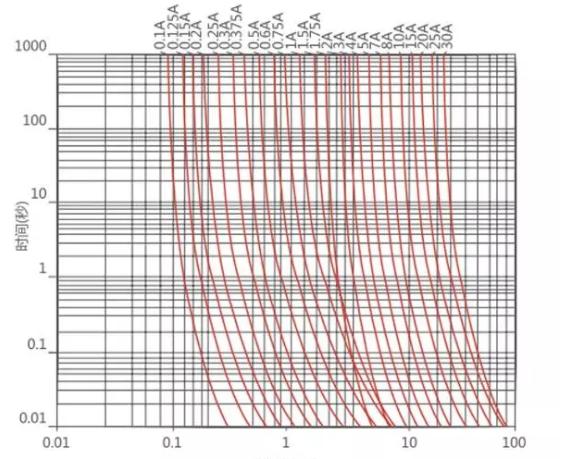

Fusing characteristics:

tt

Packaging details:

◆Inner: Plastic bag and inner box

◆Outer: Standard export carton

◆Quantity: We adopted standard export cartons. 10pcs/inner box, 2400pcs/carton. Sometimes, we will also put it into the carton of suction machine.

◆Carton dimension:35cm×26cm×22cm
