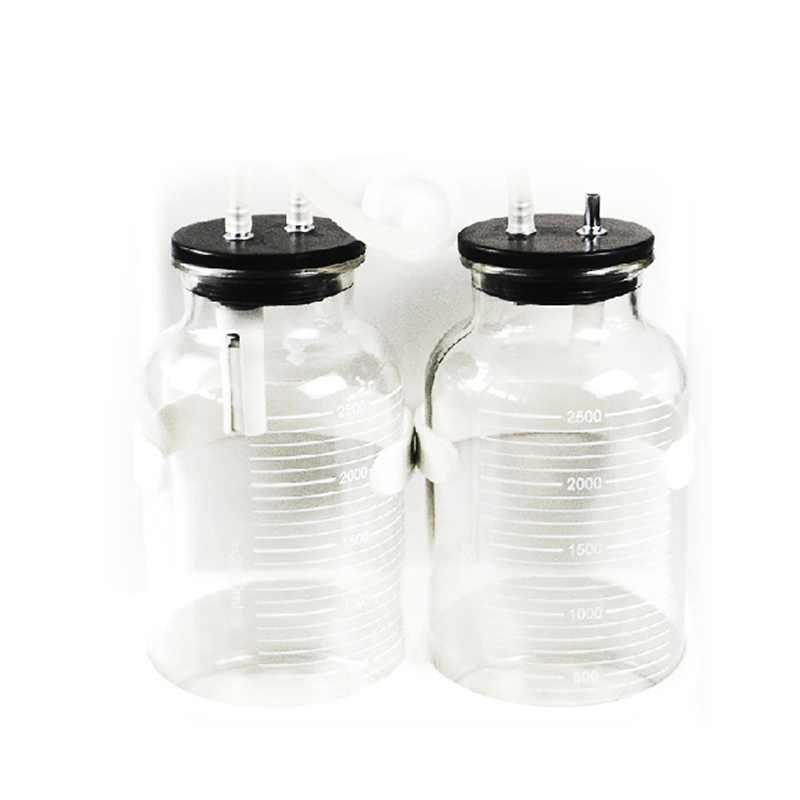

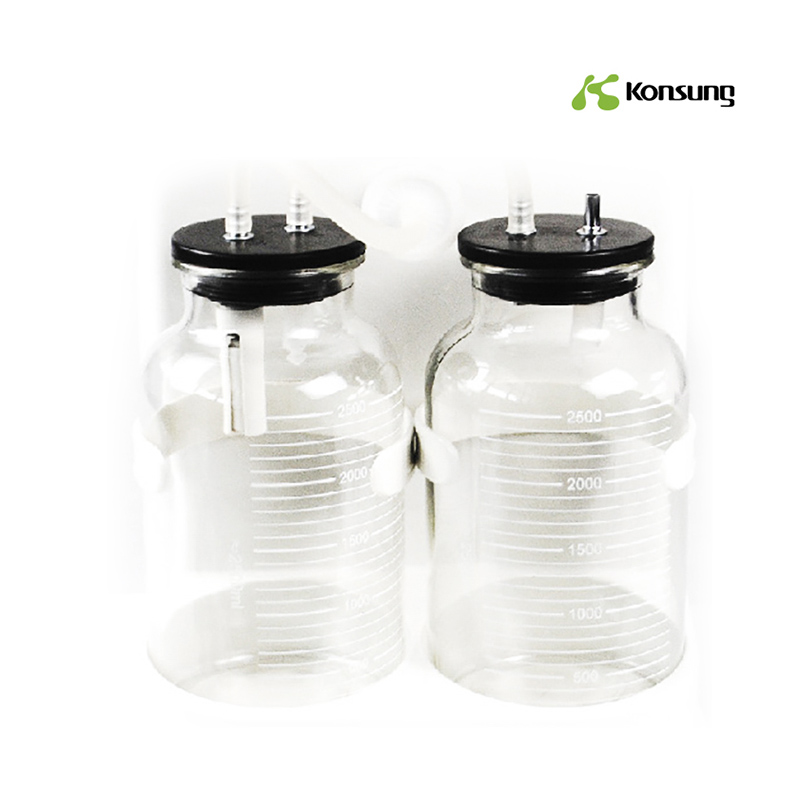

Glass storage liquid bottle

Glass storage liquid bottle for suction machine

Suction machine bottle

Product details:

◆O-ring overs the top of bottle for a positive, leakproof seal

◆Including safety valve

◆It can be cleaned by autoclave, and meet for the sterilizer of European Class B

◆There are the scale line, easy to identify

Specification:

◆Material: Glass

◆Max capacity: 2500ml, one suction machine including 2 pieces

◆Highest autoclave temperature: 134°C pressure

◆Highest autoclave pressure: 0.21MPa

Caution:

◆Put a little distilled water around the bottle lid for better air-tightness.

◆Loosen the bottle lid and clean the valve orifice. Then level down the valve rubber tip on the buoyant so that the valve rubber tip must not be crooked, broken, kinked etc and has a good link with the buoyant. The buoyant is supposed to move flexibly in the buoyant frame and there is no counter-force.

◆Lift the bottle lid to get the buoyant perpendicular to the water. Lower the lid slowly until the buoyant floats on the water.

◆Tighten the bottle lid. Connect the suction tube onto the suction area, turn clockwise the pressure regulator and run the suction unit.

◆Drop the suction tube into a bucket of clean water or imitate the working condition, the suction unit will attract the water into the bottle with overflow control mechanism. The buoyant will rise with the going up of the water level. The suction will stop when the valve shuts. The water level varies with different suction methods.

◆Turn anti-clockwise the pressure regulator and turn off the suction switch. Open the bottle lid and empty the bottle. The buoyant should be at the bottom of the buoyant frame and the valve orifice is open when the bottle lid is retightened.
