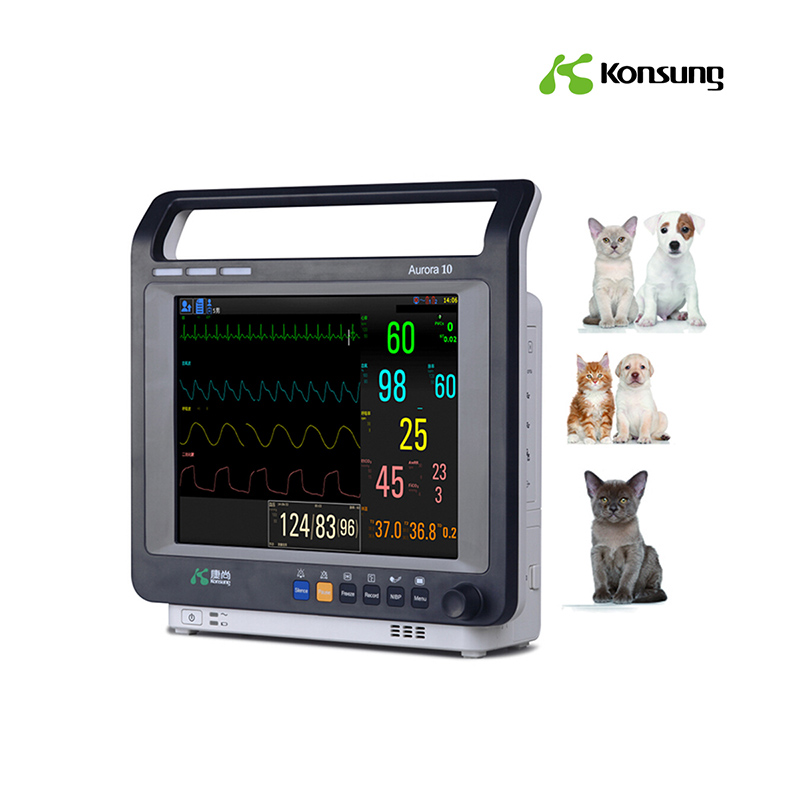

Venterinary 10.4-inch Patient Monitor

Short Description:

•The Aurora 10 vet Veterinary Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. User may select different parameter configurations according to different requirements. It adopts 100-240V~,50/60Hz for power supply, 10.4” TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.

•This device can monitor such parameters as ECG, RESP, NIBP, SpO₂ and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for moving.

Send email to us

Product Detail

Veterinary 10.4-inch monitor

Venterinary 10.4-inch Patient Monitor

Veterinary monitor

Product Detail:

• 5 Standard parameters: ECG, NIBP, SpO₂, RESP, Temp

• 10.4-inch high resolution industry color TFT LCD display

• Real time S-T segment analysis, pace-maker detection

• Indication of incorrect manipulation and malfunction analysis

• Patient info input management function

• Multi-lead ECG waveforms display in phase

• Large volume of tabular and graphic trends information storage and easy to recall

• Capture dynamic waveforms

• Up to 5 hours working capacity of built-in rechargeable lithium battery

• Unique accessory management cabinet

• Adopt digital SpO₂ technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

Networking capacity

• There is profession veterinary software, suitable to various animals.

• Option: EtCO₂, 5AH Lithium battery, wireless communication module (WIFI, GPRS), touch screen, IBP, AG.

Functions

Standard parameters: ECG, RESP, SpO₂, PR, NIBP, dual-channel TEMP

• RESP: Respiration rate (RR), Respiration waveform

• SpO₂: Oxygen saturation (SpO₂), Pulse rate (PR)

• NIBP: Systolic pressure (SYS), Diastolic pressure (DIA), Mean pressure (MEAN)

• TEMP: T1, T2, TD

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation…
