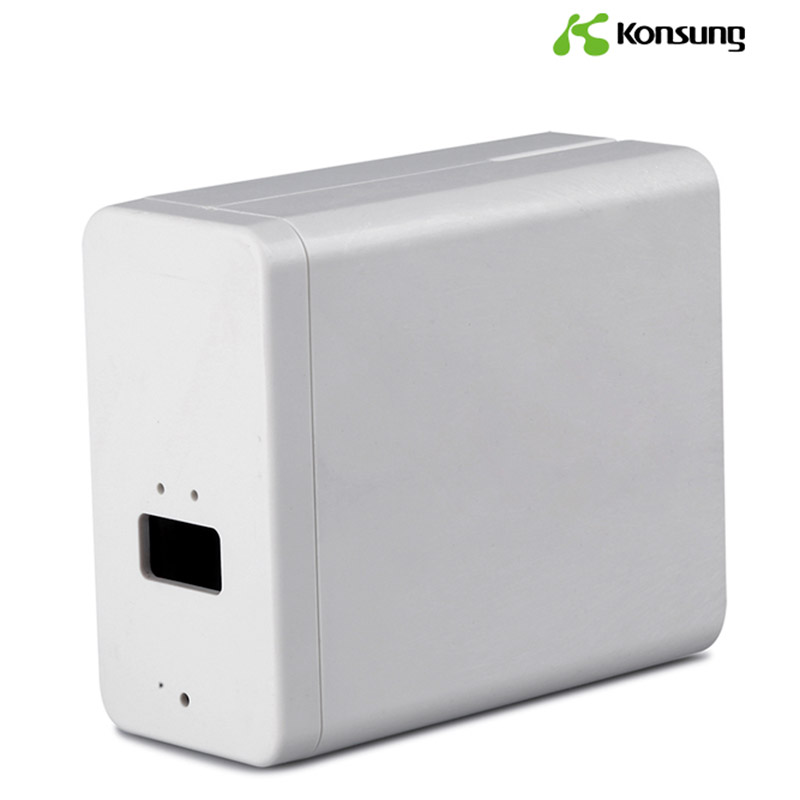

EtCO2

Product detail

◆ETCO₂ is the amount of carbon dioxide (CO₂) in exhaled air, which assesses ventilation.

◆A high ETCO₂ is a good sign of good ventilation, while low ETCO₂ is bad sign that represents hypoventilation.

◆Features reliable filter cells that help prevent contamination, ensuring the data is as accurate as possible

◆It will offer extreme experience for users, and designed to be used with minimal training

◆It is highly portable and can be transported together with medical patient monitor if necessary.

◆The module of EtCO₂ can identify various anesthetic reagents automatically.

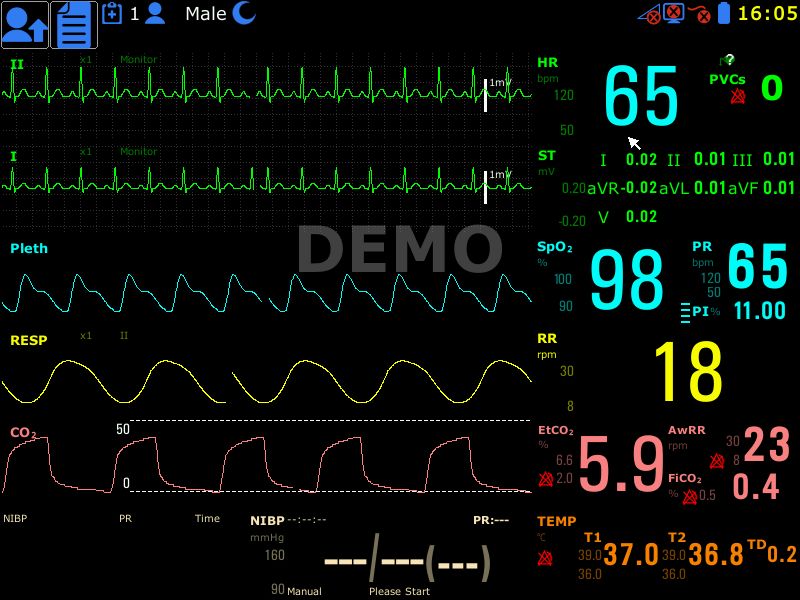

◆Capnogram displayed in less than 4s at an ambient temperature 25℃, full specifications within 2 minutes.

Parameters

◆Sensor type: side stream

◆Technical principle: Non-dispersive infrared gas analysis

◆Storage condition: -40℃～70℃, Relative Humidity＜90% (under the condition of non-condensing)

◆Working condition: -5℃～50℃, Relative Humidity: 10%～90% (under the condition of non-condensing)

◆Circumstance pressure: 86～106kPa

◆Power demand: 5V±5% (max ripple 200m V_p-p)

◆Power consumption: usual typical value 120mA during deviation and calibration, typical value is 280mA

◆CO₂ measurement range: 0～19.7% (0～150mmHg, or 0～20kPa)

◆CO₂ resolution: 0.1mmHg

◆CO₂ measurement accuracy:

◇0mmHg±2mmHg

◇41～70mmHg±5% of reading

◇71～100mmHg±8% of reading

◇101～150mmHg±10% of reading

◇Above 80BPM±5% of reading
